Evaporator Air Cooler

Evaporator Air Cooler Specification

Mount Type
Floor Standing

Frequency
50 Hz

Noise Level
Low

Place of Origin
India

Filter Type
Honeycomb Filter

Humidity Sensor
NO

Energy Efficiency Rating
3 Star

Remote Operated
Yes

Power Source
Electric

Cleaning Method
Manual

Material
Galvanized Iron

Dimension (L*W*H)
850 x 600 x 1400 mm

Water Tank
80 Litres

Fan Type
Axial

Wind Speed
1200 m/h

Cooling Area
Up to 1000 sq.ft.

Air Flow
6000 m/h

Power Supply
AC

Power Consumption
220 W

Voltage
220 V

Usage
Industrial/Commercial

Cooling Media
Honeycomb Pads

Auto Louver Movement
Yes

Caster Wheels
Yes

Body Color
Silver Grey

Water Level Indicator
Yes

Net Weight
28 kg

Speed Settings
3 Speeds

Motor Type
Copper Wound

Cord Length
2 metres

Inlet Type
Top & Bottom Refillable

Fan Diameter
18 Inch

Control Panel
Knob Type

About Evaporator Air Cooler

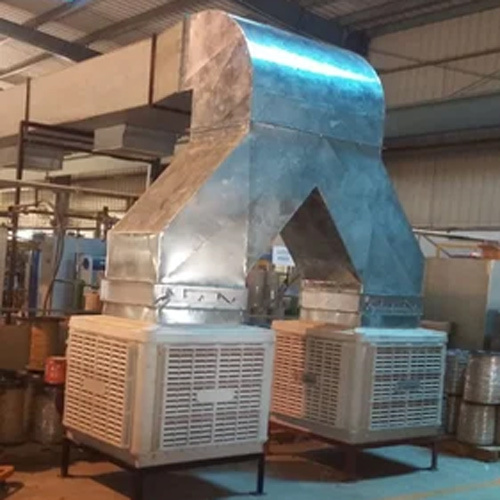

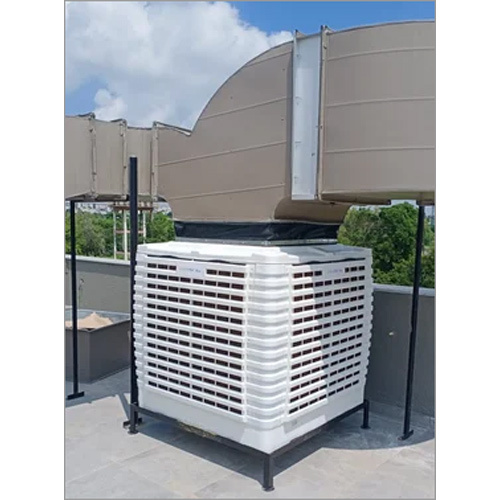

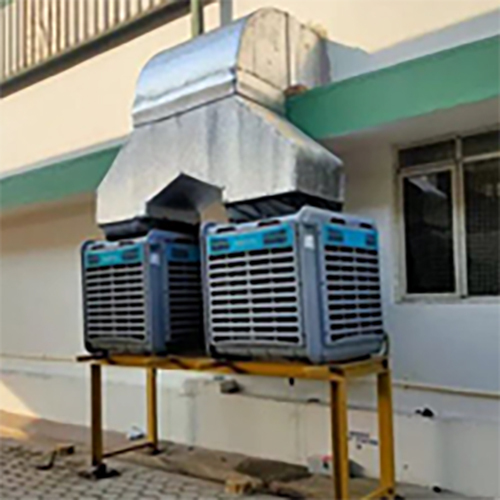

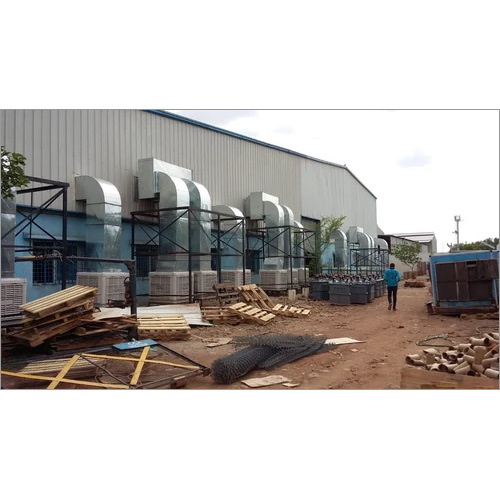

A duct cooler is a cooling system that uses evaporative cooling to provide fresh air and ventilation through metal ducts:

How it works: Duct coolers blow cool air through ducts and distribute it through outlets. They can also be used to push out stale air.
Where it can be used: Duct coolers can be used in homes, offices, factories, and other spaces.
Benefits: Duct coolers are more energy efficient and eco-friendly than air conditioners. They are also considered healthier because they provide a constant supply of fresh air from outside.
Cost: Duct coolers are cost-effective and have lower installation and maintenance costs than air conditioners.
Water consumption: Water consumption depends on factors like ambient temperature, humidity levels, and usage patterns. Cooling pads are the main consumable component and typically need to be replaced every 3-4 years.

Efficient Cooling with Honeycomb Technology

Designed for peak performance, this air cooler employs honeycomb cooling media that enhances evaporation and cooling efficiency. Paired with a large 18-inch fan and axial flow design, it guarantees rapid, extensive cooling throughout industrial or commercial spaces. The robust copper-wound motor ensures reliability during continuous operation.

Convenience and Mobility Built In

This model is floor-standing and features four caster wheels, making it easy to move from one area to another. The top and bottom refillable water inlets and an 80-litre tank reduce the frequency of refills, while the water level indicator helps monitor usage effortlessly. The control panel's intuitive knob design offers simple operation.

Durability and Low Maintenance

Manufactured from high-quality galvanized iron, this cooler is designed to withstand demanding environments. Maintenance is straightforward with a manual cleaning method and removable honeycomb filters. The 3-star energy efficiency rating ensures cost-effective cooling for your space.

FAQ's of Evaporator Air Cooler:

Q: How does the honeycomb cooling media improve the cooling effect?

A: The honeycomb pads increase surface area for evaporation, allowing water to cool air more efficiently and ensuring consistent, effective cooling even in larger industrial or commercial spaces.

Q: What is the recommended process for refilling the water tank?

A: You can refill the 80-litre water tank using either of the top or bottom inlets, simplifying the process and reducing downtime during busy operations.

Q: When should I manually clean the honeycomb filter and pads?

A: It is advisable to clean the honeycomb filter and pads every two weeks or as required, depending on usage and dust levels in your environment, to maintain optimal performance.

Q: Where can this evaporator air cooler be used most effectively?

A: This cooler is ideal for industrial and commercial spaces such as workshops, warehouses, showrooms, or large open-plan offices, effectively cooling areas up to 1000 sq.ft.

Q: What are the key benefits of choosing a copper-wound motor?

A: Copper-wound motors ensure higher efficiency, improved heat dissipation, and greater durability, allowing for long-lasting, reliable use in demanding operations.

Q: How does the auto louver movement function benefit usage?

A: Auto louver movement enables uniform distribution of cooled air across the space, minimizing hot spots and ensuring comprehensive, comfortable cooling throughout the area.
